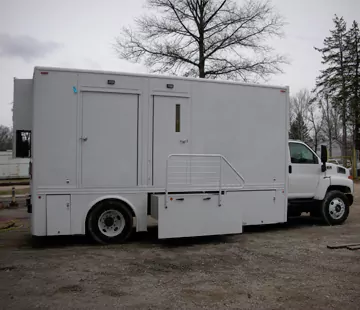

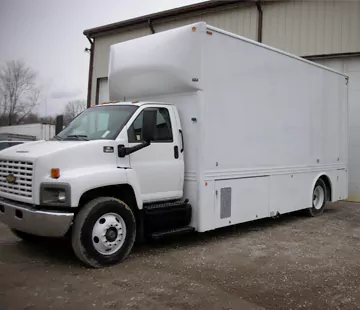

One Operatory Mobile Dental Coach

STAIR SYSTEM:

A custom built commercial quality heavy duty underbody color coordinated fiberglass stepwell will be installed at the entry door. The steps shall have built-in non-skid feature for each step for maximum safety. Stairs shall never need painting for extended service without maintenance.

BACK-UP CAMERA WITH MONITOR:

Included

CABINETRY:

All interior cabinetry (from vendor selection) shall be solid wood fronts with 5 ply plywood sides. All cabinet doors will latch to prevent opening while in transit.

CEILING AND LIGHTING:

The white dropped ceiling shall be used with flush mounted 2 tube LED lights above dental suite ceiling with dimmer.as well as the same in the reception area. There will be (1) 2’ LED ceiling light installed in pantograph area.

ELECTRICAL SYSTEM:

AC Electrical System: Shall be a 230V/50Hz VAC single phase system rated for anticipated load. System shall include distribution panel configured with EU listed type circuit breakers. Circuit breakers shall be sized per component manufacturers’ recommendation or to 125% of anticipated load.

System shall be wired using 12 gauge, 3-conductor (12/3), 600V rated, EU approved, multi- stranded commercial metal clad (MC) cable. All wiring shall be color-coded: black = hot, white = neutral, and green = ground. Additionally, wiring shall be labeled listing circuit number and/or designation at all termination points. All wiring shall adhere to applicable EU and FMVSS regulations.

Wiring shall be supported on 16" centers with insulated, non-conductive clamps. Wire bundles shall be tied with trimmed nylon ties. Extreme care shall be taken to prevent chafing, abrasion, and exposure to high heat. Wiring run in external areas shall be encased in liquid tight conduit to further protect against the elements and mechanical damage.

Specific number and type of receptacles shall be determined during the pre-construction process.

DC Electrical System: Shall be a 12VDC, negative ground system rated for anticipated conversion load. System shall include fuse panel using blade type fuses. All circuits shall be protected from over current by fuses rated for a minimum of 125% of anticipated load. 12VDC functions shall be clearly designated by printed labels. Wiring shall be labeled listing circuit number and/or designation at all termination points.

Generator battery system shall include one (1) deep-cycle battery mounted in an exterior compartment (or suitable alternative) and one (1) automatic battery charger wired to the generator and/or shore cord. Automatic battery charger shall be fully regulated to prevent battery overcharging.

System shall provide separate generator battery charging during operation periods when the vehicle engine is not running to prevent depletion of generator battery power.

WIRING REQUIREMENTS:

All high-current battery cabling shall utilize full-length cable runs sized to load; splices are not acceptable. Terminal ends shall be crimped with manufacturer recommended tooling and sealed using color-coded wrap.

All added wiring for 12VDC load runs shall be AWG 8, 10, 12, and 14, and conform to MIL-W- 1678D type D. Wire terminals used shall conform to MIL-T-7928. Terminals shall be insulated with insulation grip, Type II, Class 2, and crimped with tooling recommended by manufacturer.

All added wiring shall be supported on 12" centers and bundles shall be tied with trimmed nylon ties. Entire system shall be installed to modern US automotive standards using best practices available at time of installation. Plastic grommets and/or dielectric sealants shall be used to protect wiring and/or looms where they pass through sheet metal, bulkheads, or structural supports. Convoluted polyethylene tubing shall be used to protect against chafing and abrasion where required. Extreme care shall be exercised to provide for easy serviceability of the system in future years. Extreme care shall be taken to avoid the engine manifold, engine exhaust, muffler, or any high-heat items that may subject the wiring to severe overheating during long periods of operation. These shall be the minimum acceptable wiring standards.

CAT 5 receptacles shall be installed in coach per customer requirements with shore line hook up available in shore power compartment.

FLOOR COVERING:

Install water tight commercial-grade vinyl plank wood floor covering.

GENERATOR:

12.5 KW minimum size gasoline Generator to be installed. Generator fuel line will be tied into the existing chassis fuel tank. This fuel line will be installed approximately 1- 1/2" off the bottom of the fuel tank. This is to assure the chassis fuel tank cannot be run out of fuel totally.

The generator shall be mounted beneath the vehicle with frontal access. Generator installation shall be in full accordance with manufacturer’s recommendations including any air flow restrictions associated with the installation method.

GENERATOR COMPARTMENT:

A 1/8" aluminum compartment with proper supports will be designed and built to accommodate the required generator. The compartment will be securely tied into body framework to avoid damage to the compartment and the equipment by road vibration and road surface irregularities. Generator shall have one swing-up door for ease of access. No vents shall be installed in door, but in front floor pan and rear vertical side of generator compartment to move air over and around the generator, to minimize and re- circulate the air and prevent overheating of generator and meeting all manufacturer’s requirements. The generator compartment shall be insulated by mechanical fasteners for elimination of heat, noise, and fumes to the coach area through walls and/or flooring without interfering with necessary airflow. Insulation of laminated foam will surround all possible areas of the generator compartment. The latches will be Southco thumb-pull with adjustable twist lock security latches, keyed alike.

GENERATOR CONTROLS:

Generator start, stop preheat switch and hour meter shall be located conveniently in medical suite for easy accessibility.

HVAC:

One (1) wall mounted 30,000 BTU/5Kw heat air conditioning system. Or equivalent

LEVELING SYSTEM:

One (1) heavy duty fully automatic one-touch leveling system. The system shall use (4) two-way straight acting jacks.

LIGHTING, INTERIOR:

120 VAC emergency dome LED light mounted according to floor plan.

LIGHTING, EXTERIOR:

12 VDC DOT LED lights and (1) LED light above entry door.

RECEPTIONIST AREA:

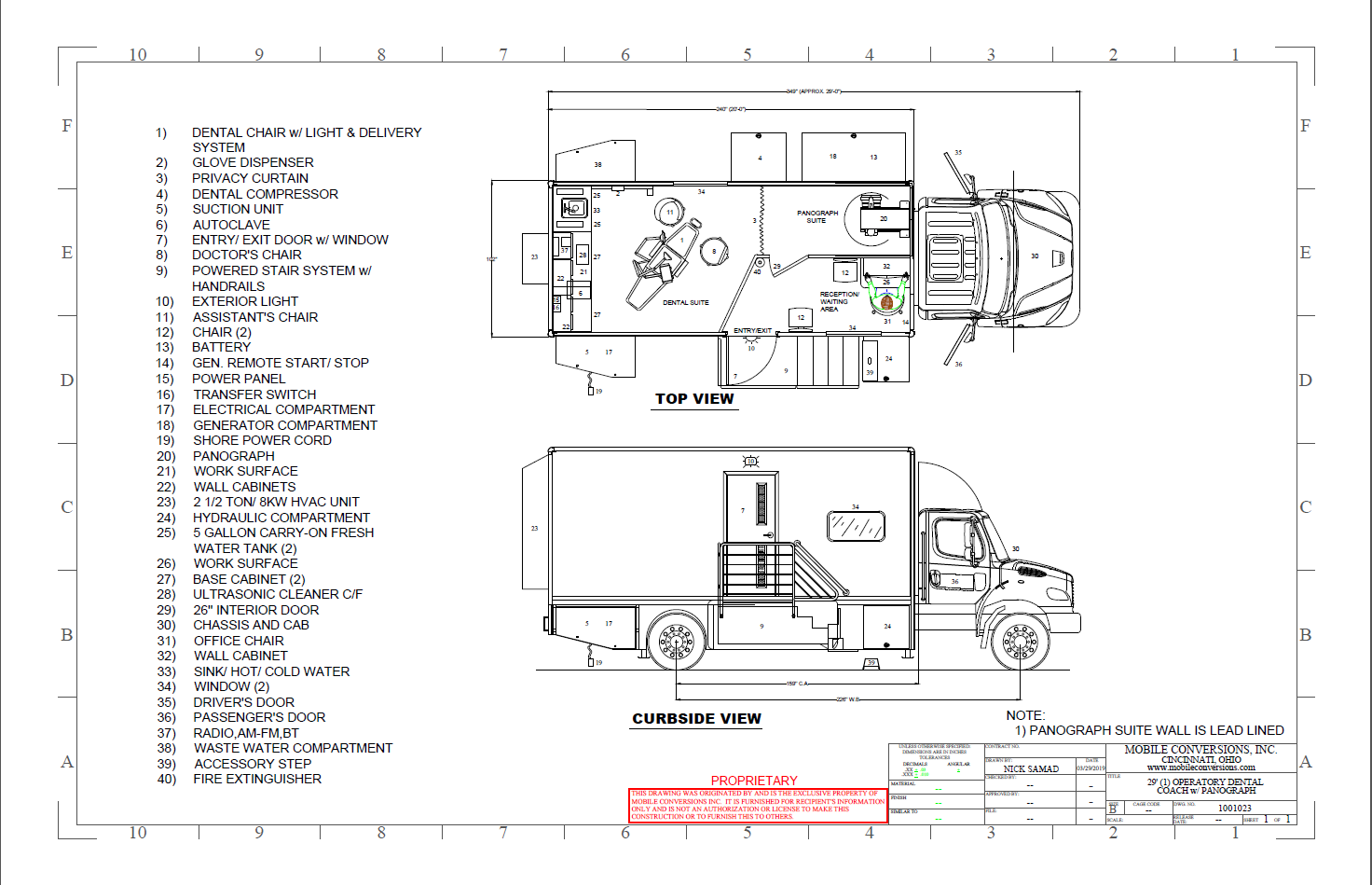

An operator's area will be constructed according to floor plan drawing # 1001023. The area will include the following:

DENTAL SUITE:

The dental suite will be constructed according to Drawing # 1001023. The dental exam will include the following:

STORAGE COMPARTMENTS:

To include:

RECEPTIONIST AREA:

To include:

SAFETY/SECURITY:

SHORELINE CORD:

Heavy-duty rubber covered 50’ long SO 230-volt shoreline cord shall be provided. Transfer switch to prevent simultaneous use of generator and shoreline cord will be located in exterior shore power cord compartment.

STEREO:

AM/FM/CD/BT medical suite radio with four (4) interior speakers to operate via generator power/ shorepower.

STORAGE:

Interior and exterior storage cabinets will be provided according to floor plan.

WINDOWS:

Two (2) sliding windows shall be installed according to final floor plan. Windows shall include day-night blinds.

AIR DEFLECTOR:

An air deflector shall be installed on cab roof and/or body.
